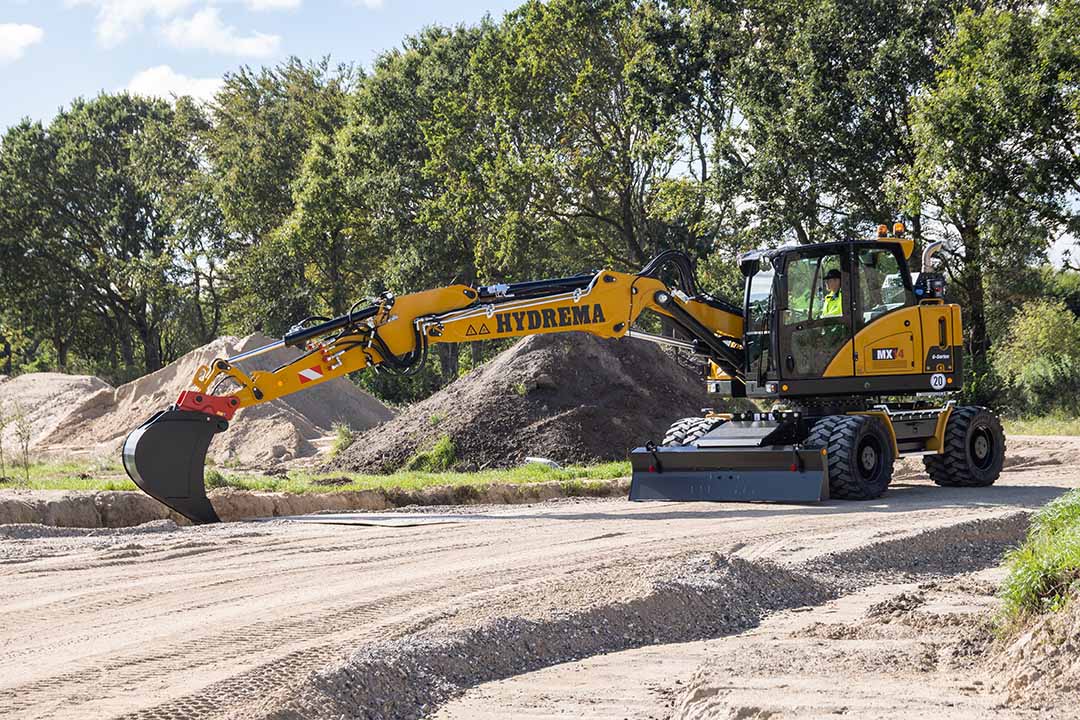

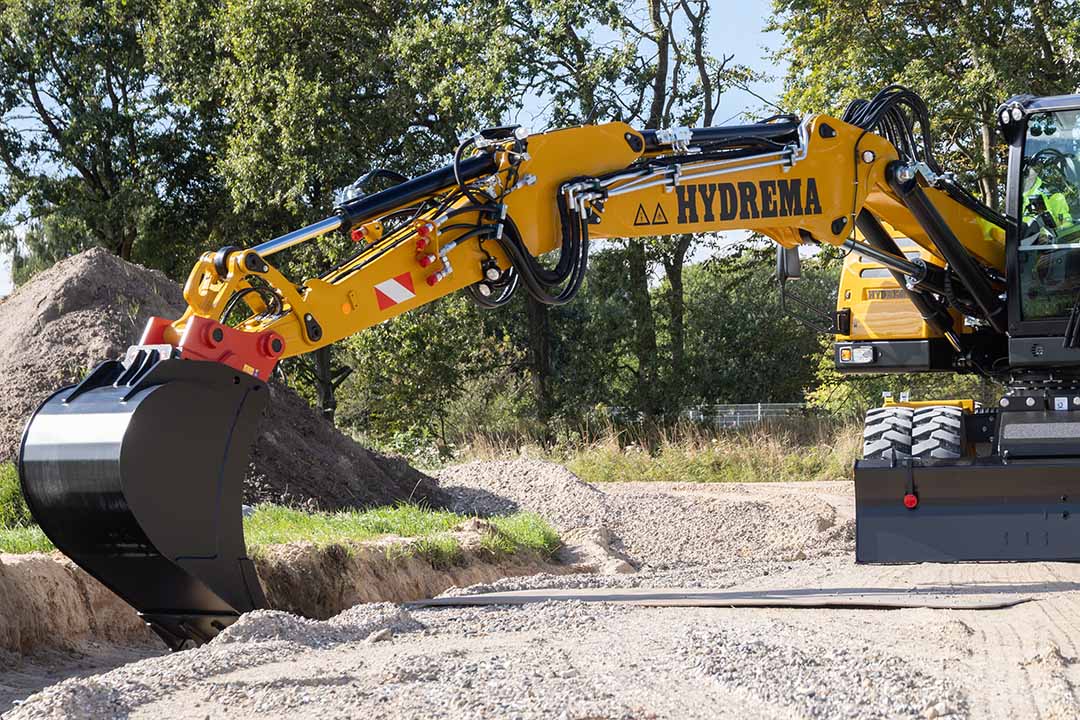

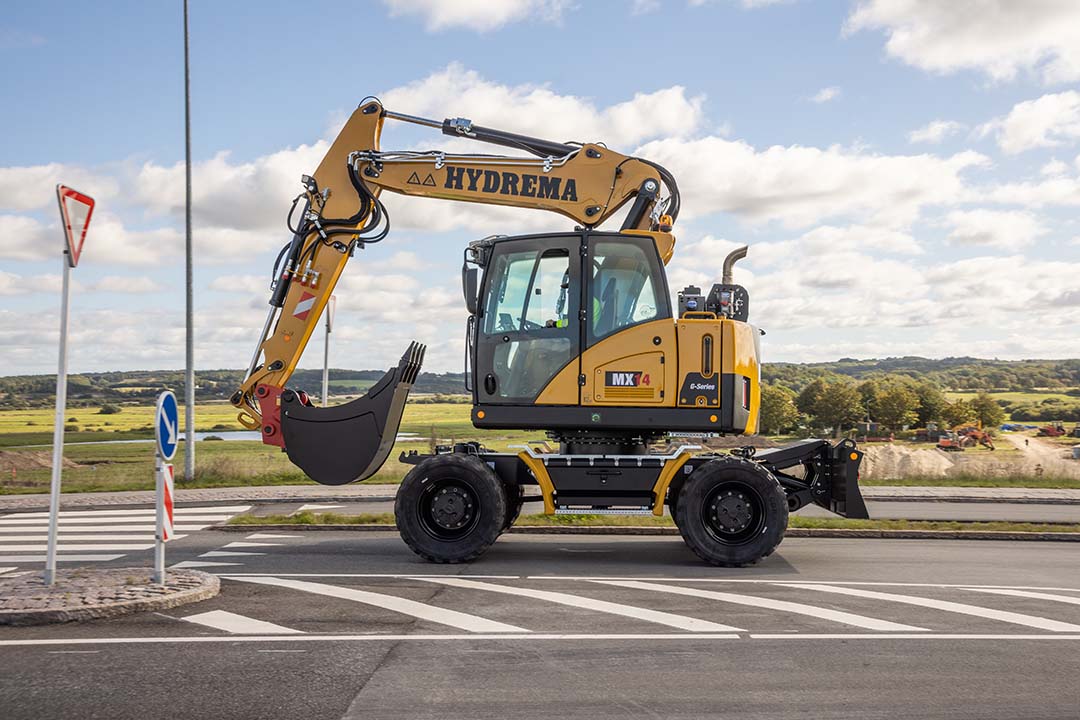

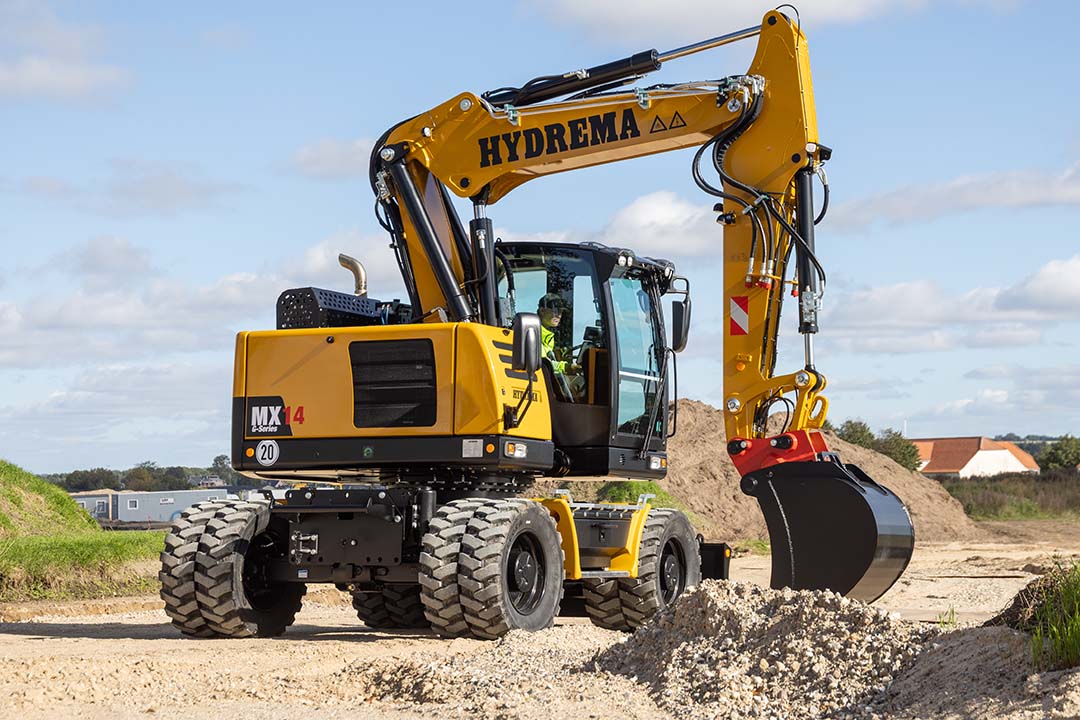

M1700 PE MX14G Right Side View Compact Excavation MX14G Left Side View Transport MX14G Close Up Digger Arm MX14G Left Side View Reach Digger Arm MX14G Left Side View Road Transport MX14G Front Right Side View Transport MX14G Left Side View Compact


Wheeled Excavator


  • Can be customised with armour cab and to requirements
  • Shortest rear end in its class at only 1550 mm
  • Cummins B 4.5 L Stage 5 engine
  • Heavy-duty construction, built to last
  • Extensive breakout force, engine power and digging performance
  • Large cab with excellent visibility


The MXG range of wheeled excavators from Hydrema Defence epitomizes the pinnacle of compact, high-performance engineering, specifically adapted for military use. These machines are expertly designed to maneuver and function efficiently in the most confined and challenging environments, including dense urban areas and active military zones. The MXG series, encompassing models like the MX14G, MX16G, MX17G, MX18G and MX20G, presents a diverse selection of wheeled excavators, each varying in size and capability to suit different operational demands.

Hydrema MX14G: Compact Power for Tactical Precision

The Hydrema MX14G, part of our innovative MXG series of wheeled excavators, can be customized for military use, retaining its ultra-compact build and high-performance capacity. This machine is exceptionally suited for operations in confined urban areas, on narrow roads, and other space-restricted military environments. The MX14G is renowned for its powerful performance and extensive digging capabilities, all packaged within a design that boasts the shortest rear end in its class. Opt for Hydrema's MX14G wheeled excavator to elevate operational efficiency to new heights in diverse military settings.

Power and Precision in Every Operation

Adapted for the rigors of military applications, the Hydrema MX14G wheeled excavator features the formidable Cummins B 4.5 L Stage 5 engine. This engine, equipped with advanced technology and a 16-valve Common-Rail Turbodiesel system, delivers strong and efficient performance. With up to 175 hp and a maximum torque of 780 Nm, it ensures unparalleled performance in even the most challenging conditions. The large fuel tank coupled with the AdBlue system makes the engine not only economical but also compliant with the latest environmental standards.

The MX14G boasts a sophisticated hydrostatic propulsion transmission with constant 4-wheel drive, assuring smooth and responsive handling. This system includes an electronically controlled drive motor and a 2-speed softshift Powershift, offering both manual and automatic gear shifting options. This flexibility allows operators to tailor the machine's driving characteristics to the unique demands of military terrains. With gear speeds designed for both on- and off-road driving, the MX14G achieves an excellent balance of power and precision. The combination of a robust engine and advanced transmission positions the Hydrema MX14G as a centerpiece of reliability and efficiency, ready to excel in diverse military environments.


Experience the compact power and versatility of the Hydrema MX14G's two-piece boom, standard on all models. Designed for precision and strength, our digging arm is constructed from high-strength steel and is available in 2.0 m and 2.5 m lengths to match your specific needs. To maximise your efficiency, the MX14G offers hydraulic quick hitch and an optional tilt rotator, making it a breeze to switch between attachments. Whatever the task, the MX14G gives you the flexibility and strength to get the job done efficiently.


Customise your Hydrema MX14G for any job with six specially designed undercarriage setups. No matter the terrain, this wheeled excavator offers a configuration to maximise stability and efficiency:

  • Rear dozer blade (A1)
  • Front dozer blade (A1V)
  • Front/rear dozer blade (2xA1)
  • Front dozer blade/rear stabilizers (A3)
  • Front stabilizers/rear dozer bl. (A3V)
  • Front/rear stabilizers (A4)

Choose the variant that suits your work and experience how MX14 adapts to your needs and improves your workday productivity and comfort.


Hydrema MX14G's advanced ZF axles are equipped with a 45% limited-slip differential lock, ensuring even power distribution and optimal traction in difficult conditions. With planetary reduction in the hubs, you get exceptional torque and control, making precision work a breeze. Each axle has built-in brakes to give you the best digging brake capacity, and with a front axle designed with a centre bolt and pendulum lock, the MX14G offers a +/- 8º pendulum angle for increased stability and manoeuvrability on uneven terrain.


Hydrema MX14G is equipped with a hydraulic steering system that guarantees precise manoeuvring even in the most demanding conditions. With the option to add joystick steering that supports speeds up to 20 km/h, the operator has extended control and an enhanced driving experience. This option makes it possible to handle the MX14G's power and precision with just a light touch, turning complex manoeuvres into simple tasks.


The Hydrema MX14G offers a sophisticated dual-circuit hydraulic system with Load Sensing technology and a separate high-pressure hydrostatic bending system, ensuring precise and efficient operation. With electronic power regulation of the work hydraulics and intelligent Mode Control, you can optimise precision work and achieve fuel savings via ECO Mode. Adapted to modern requirements, up to three hydraulic circuits (two as standard) can be easily adjusted directly from the cab, giving you full control over oil pressure and flow for up to ten different attachments. The Hydrema MX14G ensures a streamlined operation with the capabilities to switch between tasks quickly and effortlessly, maximising your productivity on the jobsite.

Oil quantity:
Pump 1: - Working hydraulics - 319 l/min
Pump 2: - Slew hydraulics - 88 l/min

System pressure:

Working hydraulics: - 350 Bar
Slew hydraulics: - 395 Bar
Hydraulic circuit 1, ZV1: - 30-200 L/min
Hydraulic circuit 2, ZV2: - 15-100 l/min
Hydraulic circuit 3, ZV3: - 50-200 l/min


The Hydrema MX14G is equipped with a robust Cummins B 4.5 L Stage 5 engine, that combines environmental responsibility with powerful performance. This advanced engine includes a DOC, DPF and SCR catalyst system with AdBlue addition that reduces emissions and meets strict environmental standards. With a 16-valve common-rail turbodiesel system and an intercooler, the engine delivers up to 175 hp and a maximum torque of 780 Nm. The large 280 L fuel tank and 31.5 L AdBlue tank ensure long working intervals and reduce refuelling time. The Hydrema MX14G is designed to deliver optimal performance without compromising on sustainability.


With the Hydrema MX14G's hydrostatic drive and constant 4-wheel drive, you're guaranteed a machine that delivers smooth power transfer and traction across all surfaces. The electronically controlled drive motor ensures variable speed control, while the innovative 2-speed soft-shift Powershift transmission gives you the choice of manual or automatic gear shifting - for a driving experience that's precisely customised to your needs.

Road gear (km/h): 37
Off-road gear (km/h): 0-9
Creep gear (km/h): 4
Max. traction (kN): 104 (111)

Speeds are given for a standard machine with dozer blade and standard tyre fitment. With additional weight such as supports, rotor tilt and heavy attachments or other equipment, the maximum speed may be lower.


The Hydrema MX14G is equipped with a robust 24V electrical system, complete with a powerful 70 Amp generator and two durable 12V, 100Ah batteries, ensuring continuous and reliable power. This wheeled excavator has extra-protected wiring and uses only waterproof connectors on the outside, extending the life of the system and ensuring constant operation without failures. With a convenient location of fuses and relays at the cabin, you can easily perform quick checks and maintenance. And for added safety, the MX14G is equipped with an emergency electric drive function that kicks in if the main electronic systems fail, as well as an automatic circuit breaker that protects the machine and simplifies maintenance.


Hydrema MX14G makes safety and convenience a priority with its automatic circuit breaker. This smart system ensures all electrical systems are safely switched off when you finish work and leave the cab, reducing unnecessary energy consumption and extending battery life. When you're ready to resume work, sensors in the door recognise your return and automatically reactivate the system. Everything is effortlessly controlled via the dashboard, where an integrated timer controls the shutdown process. There's also an emergency switch located within easy reach in the cab, adding an extra layer of security to your working day.


Discover a user experience where precision meets ergonomics. Equipped with joysticks that feature four proportional servo functions, one proportional roller and four push buttons, the MX14G gives you fine-tuned control over the machine's many functions. The optional hydraulics are also intuitively controlled via the rollers, and the foot pedals allow you to easily operate the two-piece boom, supports and dozer blade, enabling effortless multitasking. From the instrument panel, you can electronically adjust the pressure and oil flow to the option hydraulics, allowing you to customise the machine's response to your working method.


The Hydrema MX14G shines with an advanced high-pressure hydrostatic slewing system that ensures smooth and precise movement around any axis. With an innovative energy regeneration that recycles braking energy back into the diesel engine, the MX14G optimises energy efficiency in every turn. The built-in 'soft start' system, enhanced by angle sensors, ensures a smooth start-up and high control during rotation, while the mechanical yaw holding brake, integrated directly into the planetary gear, provides additional safety and stability. With an impressive swing speed of 10.8 rpm and a powerful swing torque of 50 kNm, the MX14G is designed to handle precise movements with ease, making it the ideal partner on complex construction sites.


The Hydrema MX14G is engineered with a dual-circuit braking system that offers maintenance-free, oil-immersed rail brakes for each wheel, ensuring long-lasting performance and minimal maintenance. The integrated parking brake in the transmission contributes to safety by ensuring the machine remains stationary when parked. In addition, the MX14G is equipped with an automatic excavation brake as standard, which provides extra safety during operation by automatically stabilising the machine when digging begins. This intelligent braking solution emphasises Hydrema's commitment to safe and reliable operation.


The cab is a masterpiece of spaciousness and functionality, designed with ROPS safety and comfort in mind. It features a sliding window in the door and an innovative two-part windscreen design that provides flexible opening options for fresh air and easy access. A roof window improves visibility and safety when working at height, such as lifting tasks. With an adjustable steering column and multi-adjustable armrest, ergonomics are top-notch. The cab's air conditioning system with seven air nozzles ensures optimal temperature control, while the air-suspension seat offers exceptional comfort. For the tech-savvy driver, the cab features a large 10" display with touch controls and an integrated display controller in the armrest. Safety is enhanced with large, electronically adjustable rear-view mirrors and a reversing camera for unrivalled visibility of the work area. Practical storage space under and behind the seat rounds off this premium cab.


Hydrema prioritises low noise levels, ensuring a more comfortable working day. Inside the cab, the MX14G maintains a quiet environment with only 68 dB(A) for a more concentrated and less stressful operator experience. Outside, the machine contributes to the overall noise reduction of the workplace with a sound level of 102 dB(A), proving Hydrema's dedication to minimising noise pollution even when powerful operations are underway.


Width across:
Blade 2550
Support, lowered 3870
Tire 10.00-20 2530
Tire 600/40-R22.5 2520
Tire 650/45-R22.5 2570
Tire 710/40-R22,5 2730
Track width with standard tires 1942
Wheelbase 2600
Distance, pivot center to rear axle 1200
Distance, pivot center to front axle 1400
Clearance height, cab 3120
Transport height 4000
Length, road transport 6500
Overhang, front (with 2.5 M stick) 3330
Rear distance, pivot center - counterweight 1550
Swing radius, rear 1733
Ground clearance, stabilizer 350
Ground clearance, wheels, lower stabilizer 50
Ground clearance, blade 510
Ground clearance, wheels, lower blade 75
Overhang, blade 1175
Overhang, stabilizer 1110
Ground clearance, axles 360
Swing radius, front
with 2.0 M dipper 1660
with 2.5 M dipper 1950
with 3.0 M dipper -
Total length during transport, 2.5 M dipper 8100
Height of two-piece boom during shipping, 2.5 M dipper 3000
Center shift, two-piece boom 118
Outside turn radius 6700
Inside turn radius 3600

Dimensions with standard tires 10.00-20.



Chassis Kg
A1 - Blade 16,000
A3 - Blade + stabilizer 17,200
2 x A1 - Front and rear blade 17,100
A4 - Front and rear stabilizer 17,300

Weight stated with 441 lb quick hitch and 882 lb bucket



Length of dipper MM 2.0 2.5 3.0
Strike height   9790 10250 -
Lifting height MM 8730 9190 -
Digging depth MM 4410 4900 -
Range MM 8300 8780 -
Vertical digging depth MM 3200 3700 -
Horizontal digging depth MM 4780 6080 -
Lifting height MM 6210 6710 -
Working depth MM 5320 5820 -
Range  MM 7640 8120 -
Bucket rotation angle 0 175 175 -

Breakout force, directly mounted bucket



  • Features the smallest counterweight in the range, resulting in a low swing radius
  • Offered with dipper in either 2.0 or 2.5 metre lengths
  • Features the shortest boom in the range at only 2900 mm
  • Is the smallest and most compact model in the MXG series


  • Positioned as the versatile centrepiece of the range
  • Equipped with a more powerful motor than found in the MX14G
  • Dippers available in 2.0, 2.5 and 3.0 metre variations
  • Maintains a tight swing radius while offering increased digging efficiency


  • A fusion of the MX16G and MX18G characteristics
  • Has a boom length equal to the MX16G
  • Equipped with a counterweight equal to the MX18G
  • The strongest lifting capacity in the series


  • Features the longest boom in the series for maximum reach
  • Superior in its breakout and digging ability
  • Larger and more powerful than its series peers
  • Is the most powerful and largest model in the MXG series


  • Shares the same specifications as the MX18G, but with added equipment
  • Equipped with dozer blade and supports as standard
  • The heaviest model in the series due to the extra equipment
  • An improved variant of the MX18G with standard added equipment

Hydrema MX14G: Compact Power, Military Precision

Introducing the Hydrema MX14G, a wheeled excavator reengineered for military efficiency and agility. Crafted with an ultra-compact frame, this machine is perfectly suited for tight and demanding military environments, from crowded base camps to intricate battlefield terrains. Powered by a robust Cummins engine and featuring advanced hydraulics along with a user-friendly control interface, the MX14G is a fusion of formidable performance and eco-friendly operation.

The state-of-the-art transmission of the MX14G ensures seamless gear shifts and optimal power usage, essential for varied military operations. Its intelligent drive hydraulic system offers unmatched precision in maneuvering. The cab is designed for peak comfort, with noise reduction, ergonomic features, and advanced technology, providing operator control and comfort throughout prolonged missions. With its versatile undercarriage options and efficient hydraulic system, the MX14G is more than just a wheeled excavator; it’s a dependable asset in military engineering, ensuring efficiency and accuracy in every task.

Hydrema Lines Camo Beige

Hydrema MX14G: Superior Performance for Military Earthmoving

The Hydrema MX14G redefines earthmoving in military contexts with its exceptional capabilities. Delivering up to 175 hp and a maximum torque of 780 Nm, this machine is engineered to address even the most challenging military tasks with ease.

Its high torque and engine power translate into remarkable traction and fuel efficiency, contributing to reduced operating costs in demanding military operations. The MX14G's cutting-edge hydraulic system offers an industry-leading hydraulic flow of 407 l/min, enabling seamless and precise handling of various hydraulically powered attachments.

This machine features advanced swing control and swing brake energy regeneration for smooth, precise operations. The operator's cab is crafted for comfort and ease, ensuring productivity and reduced fatigue during extended use.

Safety is paramount in the MX14G, equipped with advanced cameras and a 360-degree system for comprehensive workspace awareness, essential for safe operation in military environments.

Flexible and customizable, the MX14G can be tailored to meet the specific requirements of different military scenarios, be it construction, logistics, or field operations. Its maintenance and servicing are straightforward, with easily accessible service points ensuring the machine is always operational and reliable.

In summary, the Hydrema MX14G stands as an ideal partner for military earthmoving projects, blending power, precision, and dependability to conquer any operational challenge and deliver outstanding results.




With a powerful Cummins engine under the hood, delivering up to 175 hp and a maximum torque of 780 Nm, the MX14G is ready to tackle the most demanding tasks. The high engine performance not only provides impressive traction, but also fuel efficiency, helping to reduce operating costs.



The MX14G delivers the industry's highest hydraulic flow of 407 l/min. This makes it possible to handle hydraulically powered tools with ease and precision. Whether you're working with shovels, grapples or other equipment, the MX14G's hydraulic capacity will impress you.



The MX14G is equipped with advanced safety features, including the ability to add external cameras and a 360-degree camera system. This improves operator visibility and safety, especially in confined and busy workspaces.



With a separate hydrostatic circuit for the slewing function and regeneration of slewing brake energy, the MX14G can perform smooth and accurate slewing movements in all conditions. This is essential for precision work and increases productivity.


The cab of the MX14G is spacious, quiet and ergonomically designed to give the operator the best working experience. The large 10" touch display and customisable controls make operation easy and intuitive.


The MX14G's modular design allows you to customise the machine to your exact needs. You can choose between different undercarriage variants, tyre types and optional equipment, including an Engcon tilt rotator, to make your MX14G even more versatile.


Access to service points is simple and the machine can be equipped with a centralised lubrication system that automatically supplies the necessary lubricants. Hydrema Telematics allows you to efficiently control and monitor your machine.
